Product Detail

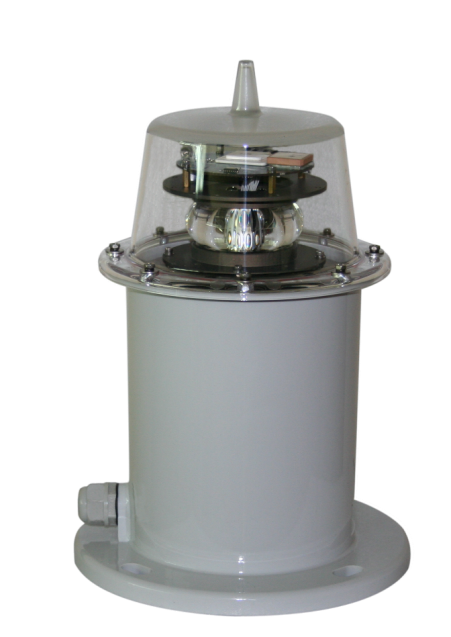

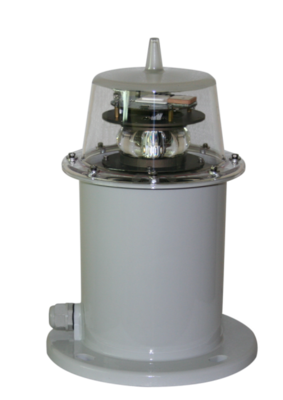

NVF-L308AIS Series LED Navigation Marker Flash

Type: Flasher
Range: 8 nautical miles
Light color: red/green/yellow/white/blue/yellow blue
Communication method: BeiDou Navigation Satellite System (BDS)/4G/NB-IoT/SMS/Bluetooth/Infrared
Voltage range: DC9~16V
Light quality: 256 kinds
Protection level: IP67
产品详情


NVF-L308AIS series LED navigation mark flasher can beinstalled on floating or fixed lighthouses and buoys, suitable for portmanagement, marine environment research, and ship collision avoidance. Thisseries of lamps adopt LED lamps as light sources and is equipped with speciallenses to achieve high light efficiency, low energy consumption, and high lightdistribution uniformity.


This series of AIS physical navigation lights is anauxiliary navigation device based on AIS communication. It uses a high-strengthPC shell and consists of an LED light source assembly, a lens, and a base. Thelight can realize remote measurement and control of the beacon light through BDSshort message/4G/NB-IoT and other communication methods; 256 kinds of flashquality; use GNSS high-precision clock to achieve synchronous flashingfunction; maximum range 8 nautical miles, energy consumption than ordinary LEDlights. The device is reduced by more than 40%; the protection level is IP67,and the double seal of watertight and airtight is realized



     微信截图_20201221100729.png   微信截图_20210104102337.png
