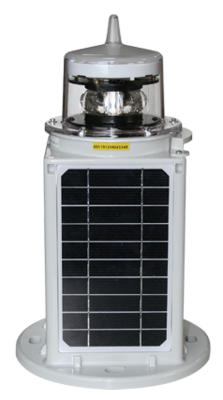

NVF-L504 series solar integrated LED navigation marklight is a new type of navigation mark light with the characteristics of lowmaintenance and long-range by using mature lithium battery componenttechnology, combined with sturdy and durable high-power LED light source withthe excellent optical performance, which also can be widely used in inlandrivers, coastal and portlight buoys.
This series of luminaires is composed of a high-power LEDlight source, lens, and weather-resistant plastic shell, and is divided intothree types: B/G/T. The light device can easily realize the remote measurementand control of the beacon light device through communication methods such as BDSshort message/4G/NB-IoT; use the GNSS high-precision clock to realize thesynchronous flash function; the maximum range is 4 nautical miles, the verticaldivergence angle is 7.3±0.3 degrees, and the horizontal divergence Angle 360degrees. Due to the use of high-efficiency light-emitting components and energysupply systems, its energy consumption is reduced by more than 40% comparedwith ordinary LED lamps, and the standard can work continuously for 30 (maximum90) rainy days.
